Marine Turbo Diffuser T-TCR12 Radial Flow Turbine Type GL Certification

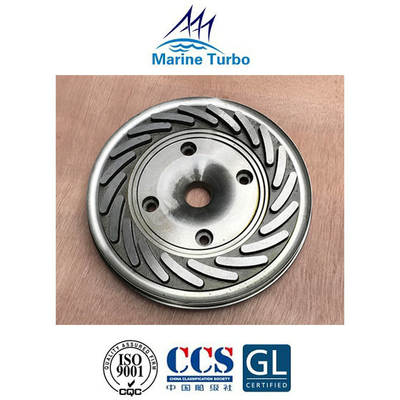

Large Image : Marine Turbo Diffuser T-TCR12 Radial Flow Turbine Type GL Certification

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T-TCR12

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 pcs / month

Contact Now

Detailed Product Description

Model:	T-TCR12 Turbocharger Diffuser	Engine Type:	Diesel, Biofuel And Gas Engines
Turbine Type:	Radial Flow	Two Stroke:	T-TCR18, T-TCR20, T-TCR22
Four Stroke:	T-TCR10, T-TCR12, T-TCR14, T-TCR16	Certification:	ISO9001, CCS, Or GL
Application:	Marine Propulsion, Excavators, Locomotives, Power Generation, Off-road Vehicles, Machanical Drive, Mining, Marine Gensets	Package:	Wood Case, Carton Box Or According To Require
High Light:	marine turbocharger kits , turbo replacement parts

Marine Turbo Diffuser T-TCR12 Radial Flow Turbine Type GL Certification

T-MAN/T-TCR series marine turbocharger's design features:

Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.

Increase of the compressor pressure ratio
High efficiency
Low noise emissions
Simple installation to the engine
Easy maintenance
Long service life

T-TCR series Marine turbocharger dimension and weight only for reference:

T-MAN	T-TCR Series	L (mm)	H (mm)	W (mm)	Weight (kg)
	T-TCR10	860	410	327	48
	T-TCR12	889	496	401	78
	T-TCR14	950	623	534	108
	T-TCR16	1,091	658	590	175
	T-TCR18	1,311	870	730	306
	T-TCR20	1,662	970	852	504
	T-TCR22	1,990	1,320	1,068	1,044

Brief introduction of Marine turbocharger:

Moban 3-1 independently: The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.

Option Moban 3-2 (can add in one moban or delete in another moban): Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.

Option Moban 3-3 (can add in one moban or delete in another moban): When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.

Brief profile for Marine Turbo Company:

Marine Turbo also can provide product customization services to meet the personalized needs of customers. According to the sample or drawings provided by customers, Marine Turbo can process and manufacture the corresponding products in order to provide customers with sound-quality products at low cost.

Marine Turbo supply marine turbocharger replacement parts:

With over 20 years of manufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....

According to customers’ requirements, Marine Turbo can offer the marine turbocharger replacement parts suitable for the following Brands and models:

T-ABB	T-VTR“0”“1”“4”, P/D/E
	T-TPS44D/E/F	T-TPS48D/E/F	T-TPS52D/E/F	T-TPS57D/E/F	T-TPS61D/E/F
	T-TPL65	T-TPL69	T-TPL73	T-TPL77	T-TPL80	T-TPL85
	T-RR151	T-RR181
	T-A145-M	T-A170
T-MAN	T-NR12/S	T-NR15/R	T-NR17/S	T-NR20	T-NR20/R	T-NR20/S
	T-NR24/R	T-NR24/S	T-NR26/R	T-NR29/S	T-NR34/S
	T-NA34T/34S	TNA40T/40S	T-NA48T/48S	T-NA57T/57T9	T-NA70T/70T9
	T-TCR12	T-TCR16	T-TCR18	T-TCR20	T-TCR22
	T-TCA44	T-TCA55	T-TCA66	T-TCA77	T-TCA88
T-MET	T-MET18SRC	T-MET26SR	T-MET30SR
	T-MET33SB/SBII/SC/SD	T-MET35/35S/35SA/350	T-MET42SB/SBII/SC/SD/SE	T-MET45/45S/450	T-MET53SB/SBII/SC/SD/SE
	T-MET66SB/SC/SD	56S-B	560	60MA	66SB/SC/SD/SE/SEII
	T-MET53SE
	T-MET83SE	T-MET83SEII
T-KBB	T-HPR3000	T-HPR4000	T-HPR5000	T-HPR6000
	ST5 SERIES
	T-HRBR3-2	T-HRBR4-3
T-IHI	T-RH133	T-RH143	T-RH163	T-RH183	T-RH203
	T-AT14
	T-RU110	T-RU120

Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.

Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.

Quality Assurance of marine turbocharger replacement parts:

All Marine Turbo products must pass all of our strict Quality Assurance procedures and standards, both on receipt from our suppliers, and before dispatch to our many and valued customers. All units are supplied with a full test report and balance report.
Marine Turbo factory has passed the ISO9000 Quality Management System certificate in 2001, and most of turbocharger replacement parts are certificated by CCS and GL.

Marine Turbo remains at your full disposal for any further inquiries or questions.
