Product Details:
Payment & Shipping Terms:
|
| Model: | T-TPS44/48/52/61 Turbocharger Tools | Size: | Standard Size, Or As Customer's Request |
|---|---|---|---|
| Type1: | Exhaust Gas Turbocharger Parts | Fuel: | Diesel |
| Turbine Type: | Single Stage Mixed-flow Turbine | Certification: | ISO9001, CCS, Or GL |
| High Light: | turbo replacement parts,turbo spare parts |
||

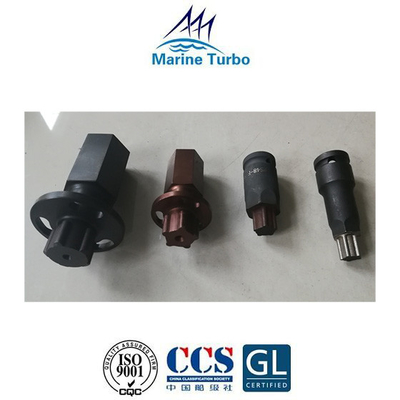

T-TPS44/48/52/61 Turbocharger Tools
T-ABB/T-TPS series marine turbocharger is a mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and external lube oil system. Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine. T-ABB/T-TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to T-TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.
T-TPS series Marine turbocharger dimension and weight only for reference:
| Model | Overall Dimensions (mm) | Weight(Kg) | |||||||
| A | B | C | D | E | F | G | H | ||
| TPS48 | 185 | 185 | 111 | 105 | 164 | 195 | 154 | 135 | 115 |
| TPS52 | 220 | 215 | 132 | 129 | 187 | 224 | 186 | 161 | 166 |
| TPS57 | 270 | 260 | 160 | 158 | 232 | 268 | 225 | 195 | 266 |
| TPS61 | 322 | 306 | 193 | 188 | 275 | 320 | 270 | 234 | 458 |
Brief introduction of Marine turbocharger:
The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for T-MAN, T-ABB, T-KBB, T-MET, T-IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or overhaul needs for various brands with a quick response and a reasonable price.
Marine Turbo also can provide product customization services to meet the personalized needs of customers. According to the sample or drawings provided by customers, Marine Turbo can process and manufacture the corresponding products in order to provide customers with sound-quality products at low cost.
| T-ABB | T-VTR“0”“1”“4”, P/D/E | |||||
| T-TPS44D/E/F | T-TPS48D/E/F | T-TPS52D/E/F | T-TPS57D/E/F | T-TPS61D/E/F | ||
| T-TPL65 | T-TPL69 | T-TPL73 | T-TPL77 | T-TPL80 | T-TPL85 | |
| T-RR151 | T-RR181 | |||||
| T-A145-M | T-A170 | |||||
| T-MAN | T-NR12/S | T-NR15/R | T-NR17/S | T-NR20 | T-NR20/R | T-NR20/S |
| T-NR24/R | T-NR24/S | T-NR26/R | T-NR29/S | T-NR34/S | ||
| T-NA34T/34S | TNA40T/40S | T-NA48T/48S | T-NA57T/57T9 | T-NA70T/70T9 | ||
| T-TCR12 | T-TCR16 | T-TCR18 | T-TCR20 | T-TCR22 | ||
| T-TCA44 | T-TCA55 | T-TCA66 | T-TCA77 | T-TCA88 | ||
| T-MET | T-MET18SRC | T-MET26SR | T-MET30SR | |||
| T-MET33SB/SBII/SC/SD | T-MET35/35S/35SA/350 | T-MET42SB/SBII/SC/SD/SE | T-MET45/45S/450 | T-MET53SB/SBII/SC/SD/SE | ||
| T-MET66SB/SC/SD | 56S-B | 560 | 60MA | 66SB/SC/SD/SE/SEII | ||
| T-MET53SE | ||||||
| T-MET83SE | T-MET83SEII | |||||
| T-KBB | T-HPR3000 | T-HPR4000 | T-HPR5000 | T-HPR6000 | ||
| ST5 SERIES | ||||||
| T-HRBR3-2 | T-HRBR4-3 | |||||
| T-IHI | T-RH133 | T-RH143 | T-RH163 | T-RH183 | T-RH203 | |
| T-AT14 | ||||||
| T-RU110 | T-RU120 |
Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.
Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.
Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
All Marine Turbo products must pass all of our strict Quality Assurance procedures and standards, both on receipt from our suppliers, and before dispatch to our many and valued customers. All units are supplied with a full test report and balance report.
Marine Turbo factory has passed the ISO9000 Quality Management System certificate in 2001, and most of turbocharger replacement parts are certificated by CCS and GL.
Marine Turbo remains at your full disposal for any further inquiries or questions.
