Product Details:
Payment & Shipping Terms:
|
| Model: | T- NR20/R Turbo Compressor Wheel | Product Name: | Turbocharger Compressor Wheel, Marine Turbo Compressor Impeller |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Engine Type: | Diesel, Biofuel And Gas Engines |
| Turbine Type: | Radial Flow | Pressure Ration: | Max. 4.5 |
| Quality: | High Performance, Top And High Level, Guaranteed | Certification: | ISO9001, CCS, Or GL |
| High Light: | marine replacement parts,turbo spare parts |
||

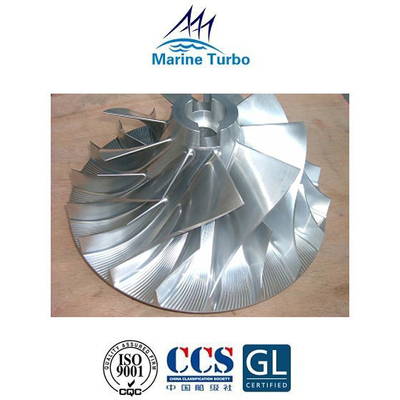

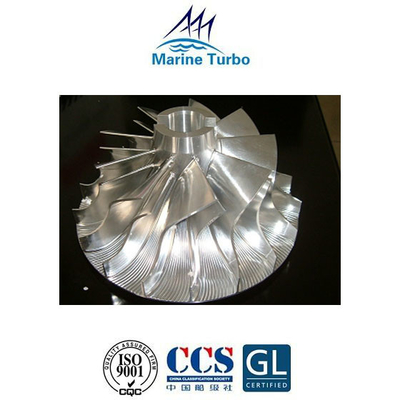

T- NR20/R compressor wheel (also called compressor Impeller) is belonging to one part of T- MAN / T- NR series marine turbocharger with the design features as following:
T- MAN / T- NR series exhaust gas turbocharger is a radial-flow turbocharger which consists of single-stage radial-flow turbine and centrifugal compressor.
T- NR turbochargers adopts inboard plain bearing, uncooled casings and lubricated by the engine's lube oil system.
Max. of the compressor pressure ratio about 4.5;
Suitable for a wide variety of fuels:heavy fuel, diesel oil, biofuel and gas
Simple and durable design;
Easy maintenance；
Long service life；
widely used in ship building, locomotive, land power station and petroleum drilling industries．
| Type | L(mm) | W(mm) | H(mm) | Weight (kg) |
| T- NR12/S | 858 | 402 | 432 | 155 |
| T- NR15/R | 715-724 | 500-520 | 525-672 | 200 |
| T- NR20/R | 900-960 | 662-692 | 700-730 | 400 |
| T- NR20/S | 1,165 | 715 | 678 | 350 |
| T- NR24/S | 1470 | 748 | 838 | 505 |
The exhaust gas turbocharger is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved.
The compressor wheel (compressor impeller) is of aluminium alloy or the more expensive titanium. Manufactured from a single casting it is located on the rotor shaft by splines. Aluminium impellers have a limited life, due to creep, which is dictated by the final air temperature. Often the temperature of air leaving the impeller can be as high as 200°C. The life of the impeller under these circumstances may be limited to about 70000 hours. To extend the life, air temperatures must be reduced. One way of achieving this is to draw the air from outside where the ambient air temperature is below that of the engine room. Efficient filtration and separation to remove water droplets is essential and the impeller will have to be coated to prevent corrosion accelerated by the possible presence of salt water.
