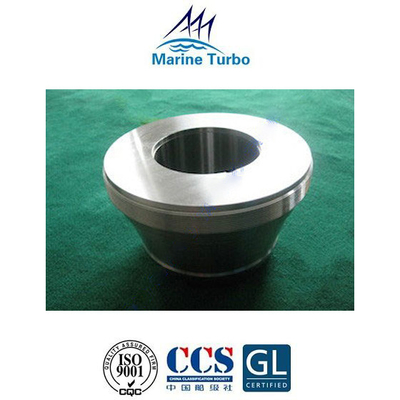

Turbo Marine Replacement Parts T- NA Series Exhaust Gas Type

Large Image : Turbo Marine Replacement Parts T- NA Series Exhaust Gas Type

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- NA series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 pcs / month

Contact Now

Detailed Product Description

Model:	T- NA Series Turbo Service Kit	Product Name:	Turbocharger Service Kit, Marine Turbo Repair Kit, Turbocharger Overhaul Kit
Size:	Standard Size, Or As Customer's Request	Type:	Exhaust Gas Turbocharger
Engine Power:	1,650 To 24,500 KW Per Turbocharger	Turbine Type:	Axial-flow
Lubrication:	By Engine's Lube Oil System	Application:	Marine, Power And Industrial Applications
High Light:	marine replacement parts , turbo spare parts

Turbo Marine Replacement Parts T- NA Series Exhaust Gas Type

T- MAN / T- NA series exhaust gas turbocharger features:

T- NA series turbo service kits (also called repair kits) belongs to T- MAN / T- NA series exhaust gas turbocharger which has the design features as below:

T- NA series supercharger is a axial-flow turbocharger.
T- NA turbochargers adopts inboard plain bearing, uncooled casings and lubricated by the engine's lube oil system.
For engine power output range from 1,650 to 24,500 kW per turbocharger;
Axial flow turbine inboard plain bearing design;
Lubricated by the engines lube oil system;
Suitable for a wide variety of fuels, heavy fuel, diesel oil, biofuel and gas operation;
Simple and durable design;
Easy maintenance；
Long service life；
widely used in marine, power and industrial applications．

T- MAN / T- NA series marine turbocharger types:

T- MAN TURBOCHARGER	T- NA Series
	T- NA34/T
	T- NA34/S
	T- NA40/T
	T- NA40/S
	T- NA48/T
	T- NA48/S
	T- NA57/N
	T- NA57/M
	T- NA57/T7
	T- NA57/T8
	T- NA57/T9
	T- NA70/T7
	T- NA70/T9

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger / exhaust gas turbocharger is a precision machine.

When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
