Product Details:
Payment & Shipping Terms:
|
| Model: | T-VTR 4 SERIES Turbine Blade | Engine Type: | Heavy Duty Diesel Engine And Gas Engine |
|---|---|---|---|
| Turbine Type: | Single-stage Axial Turbine | Compressor Type: | Radial Compressor |
| Bearing Type: | External Bearing | Lubrication Type: | Integrated Lubrication System |
| Power Range: | 700-18,500 KW | Quality: | High Performance, Top And High Level, Guaranteed |
| High Light: | turbo replacement parts,marine turbocharger kits |
||

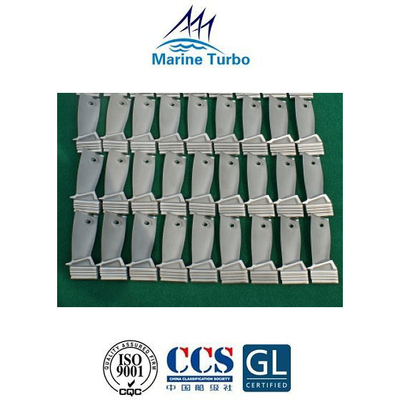

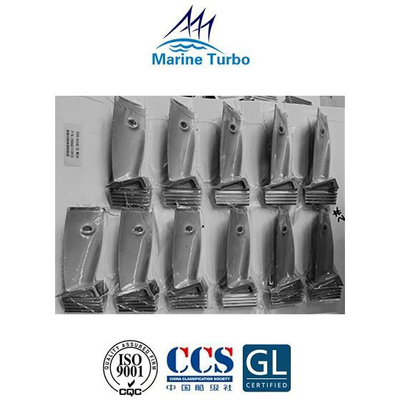

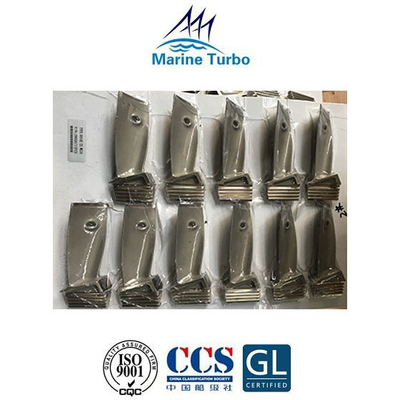

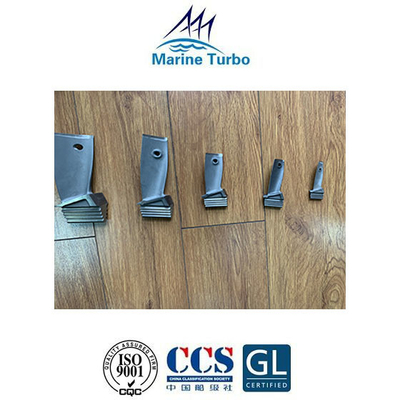

Single Stage Axial Turbine Blade T-VTR304 External Bearing GL Certification
T-VTR304 compressor wheel location picture:
T-VTR series Marine turbocharger dimension and weight only for reference:
| T-VTR 4 Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Weight (kg)* |
| T-VTR214 | 403 | 613 | 670 | 649 | 656 | 350 |
| T-VTR254 | 479 | 722 | 797 | 768 | 778 | 570 |
| T-VTR304 | 558 | 870 | 960 | 920 | 928 | 820 |
| T-VTR354 | 639 | 1013 | 1126 | 1095 | 1104 | 1700 |
| T-VTR454 | 805 | 1270 | 1416 | 1374 | 1387 | 3250 |
| T-VTR564 | 1014 | 1584 | 1767 | 1712 | 1726 | 6500 |
| T-VTR714 | 1225 | 2031 | 2244 | 2190 | 2204 | 12500 |
Note: *not including water (if with water, add approx. 5%)
Brief introduction of Marine turbocharger:
The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for T-MAN, T-ABB, T-KBB, T-MET, T-IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or overhaul needs for various brands with a quick response and a reasonable price.
Marine Turbo supply marine turbocharger replacement parts:
With over 20 years of manufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....
| T-ABB | T-VTR“0”“1”“4”, P/D/E | |||||
| T-TPS44D/E/F | T-TPS48D/E/F | T-TPS52D/E/F | T-TPS57D/E/F | T-TPS61D/E/F | ||
| T-TPL65 | T-TPL69 | T-TPL73 | T-TPL77 | T-TPL80 | T-TPL85 | |
| T-RR151 | T-RR181 | |||||
| T-A145-M | T-A170 | |||||
| T-MAN | T-NR12/S | T-NR15/R | T-NR17/S | T-NR20 | T-NR20/R | T-NR20/S |
| T-NR24/R | T-NR24/S | T-NR26/R | T-NR29/S | T-NR34/S | ||
| T-NA34T/34S | TNA40T/40S | T-NA48T/48S | T-NA57T/57T9 | T-NA70T/70T9 | ||
| T-TCR12 | T-TCR16 | T-TCR18 | T-TCR20 | T-TCR22 | ||
| T-TCA44 | T-TCA55 | T-TCA66 | T-TCA77 | T-TCA88 | ||
| T-MET | T-MET18SRC | T-MET26SR | T-MET30SR | |||
| T-MET33SB/SBII/SC/SD | T-MET35/35S/35SA/350 | T-MET42SB/SBII/SC/SD/SE | T-MET45/45S/450 | T-MET53SB/SBII/SC/SD/SE | ||
| T-MET66SB/SC/SD | 56S-B | 560 | 60MA | 66SB/SC/SD/SE/SEII | ||
| T-MET53SE | ||||||
| T-MET83SE | T-MET83SEII | |||||
| T-KBB | T-HPR3000 | T-HPR4000 | T-HPR5000 | T-HPR6000 | ||
| ST5 SERIES | ||||||
| T-HRBR3-2 | T-HRBR4-3 | |||||
| T-IHI | T-RH133 | T-RH143 | T-RH163 | T-RH183 | T-RH203 | |
| T-AT14 | ||||||
| T-RU110 | T-RU120 |
Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.
Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.
All Marine Turbo products must pass all of our strict Quality Assurance procedures and standards, both on receipt from our suppliers, and before dispatch to our many and valued customers. All units are supplied with a full test report and balance report.
Marine Turbo factory has passed the ISO9000 Quality Management System certificate in 2001, and most of turbocharger replacement parts are certificated by CCS and GL.
Marine Turbo remains at your full disposal for any further inquiries or questions.
