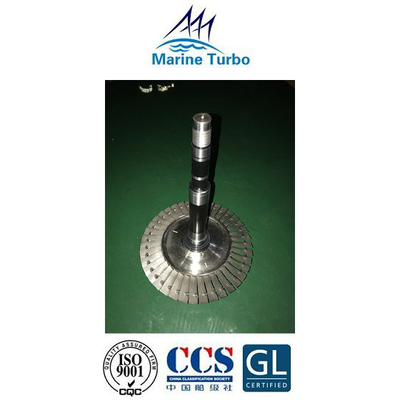

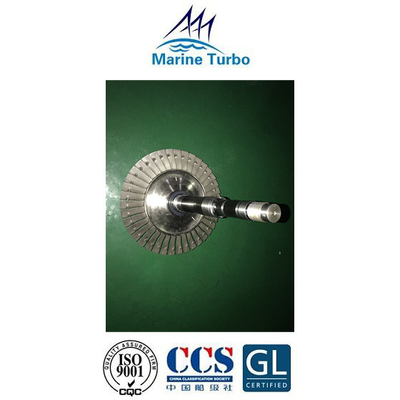

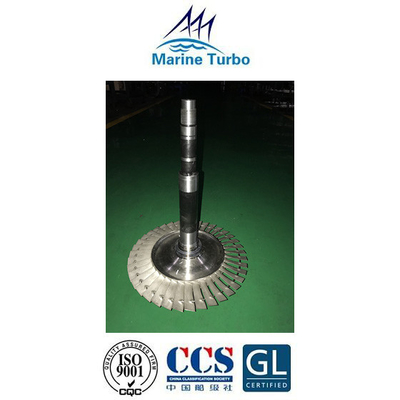

Marine Turbocharger Parts Axial Turbine Type T- TPL65 Bladed Shaft

Large Image : Marine Turbocharger Parts Axial Turbine Type T- TPL65 Bladed Shaft

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TPL65

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T- TPL65 Bladed Shaft	Product Name:	Turbocharger Bladed Shaft, Rotor Shaft, Turbine Shaft, Marine Turbo Bladed Shaft
Type:	Exhaust Gas Turbocharger	Fuel:	Diesel, Fuel, Heavy Fuel Oil
Turbine Type:	Axial Turbine	T-TPL-A:	Four-stroke
High Light:	turbocharger rotor complete , marine turbo kits

Marine Turbocharger Parts Axial Turbine Type T- TPL65 Bladed Shaft

T- ABB / T- TPL-A series turbocharger design features:

T- ABB / T- TPL65 bladed shaft belongs to T- TPL-A series turbocharger. The T- TPL-A series turbocharger is for large medium-speed diesel and gas engines, with a power output range from2,500kW to 12,500kW.

Turbine: The T- TPL-A turbocharger is axial turbine for high efficiencies and high volume flow rates.
Compressor: The T- TPL-A compressors ensure the high volume flow rates which allow optimized matching to different engine applications. Its single-piece, splitter-bladed aluminum alloy wheels with backswept blades ensure high efficiencies and wide compressor maps. its pressure ratio is from 4.2 up to 5.0 based on different design.
Bearing: The T- TPL-A bearing assembly lubricated directly by the engine lube oil system, plain bearings can run up to 36,000 hours before being overhauled.

T- ABB / T- TPL-A turbocharger series include:

T- ABB	T- TPL-A Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight (kg)*
	T- TPL65	870	889	1545	600	360	362	458	1230
	T- TPL69	1025	1043	1852	708	424	427	540	1780
	T- TPL73	1192	1217	2154	822	494	497	627	3070
	T- TPL77	1416	1446	2539	978	586	589	746	4840

Note: *includes filter silencer.

Marine Turbocharger Parts Axial Turbine Type T- TPL65 Bladed Shaft

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
