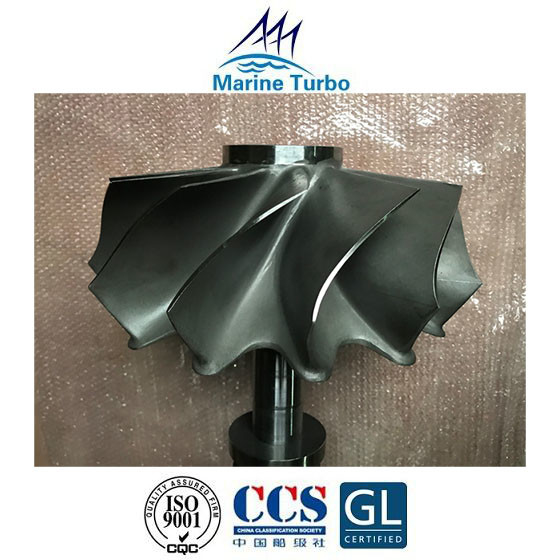

Turbocharger Rotor Assembly T- TPS Series Turbine Shaft 12 Months Warranty

Large Image : Turbocharger Rotor Assembly T- TPS Series Turbine Shaft 12 Months Warranty

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TPS Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T- TPS Series	Product Name:	Marine Turbo Turbine Shaft, Turbocharger Rotor Shaft
Size:	Standard Size, Or As Customer's Request	Type1:	Exhaust Gas Turbocharger Parts
Turbine Type:	Single Stage Mixed-flow Turbine	Quality:	High Performance, Top And High Level, Guaranteed
Certification:	ISO9001, CCS, Or GL	Warranty:	12 Months
High Light:	turbocharger rotor complete , marine turbo kits

Turbocharger Rotor Assembly T- TPS Series Turbine Shaft 12 Months Warranty

T- ABB / T- TPS series turbocharger features:

T- TPS Turbine shaft is one part of T- ABB / T- TPS series turbocharger with the features as below:

It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
cooled & uncooled bearing casing design.
The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- ABB / T- TPS series turbocharger dimension and weight only for reference:

Model	Overall Dimensions (mm)								Weight(Kg)
Model	A	B	C	D	E	F	G	H	Weight(Kg)
T- TPS48	185	185	111	105	164	195	154	135	115
T- TPS52	220	215	132	129	187	224	186	161	166
T- TPS57	270	260	160	158	232	268	225	195	266
T- TPS61	322	306	193	188	275	320	270	234	458

Turbocharger Rotor Assembly T- TPS Series Turbine Shaft 12 Months Warranty

T- TPS turbine shaft / rotor shaft description:

The turbocharger rotor shaft is equipped with components such as a compressor and a turbine impeller, and has a complicated structure and a large weight. If the ship is parked for a long time, the turbocharger rotor will be bent and deformed due to the long-term non-operating self-weight, which will break the matching gap between the rotor and the casing, the gas seal and the casing, and the rotor will be lost. In severe cases, the rotor is difficult to rotate and the friction is severe. A large centrifugal force is generated during operation to cause the supercharger to vibrate.

Therefore, if the ship is suspended for a long time, attention should be paid to the management of the supercharger to prevent deformation of the rotor.
