Product Details:
Payment & Shipping Terms:
|
| Model: | T- IHI / T- RH133 Bearing Casing | Product Name: | Turbo Bearing Housing, Turbocharger Bearing Pedestals, Marine Turbo Bearing Casing |
|---|---|---|---|
| Type: | T- IHI Marine Turbocharger | Turbine Type: | Single Stage Turbine |
| Quality: | High Performance, Top And High Level, Guaranteed | Warranty: | 12 Months |
| High Light: | casing bearing housing,turbocharger casing |
||

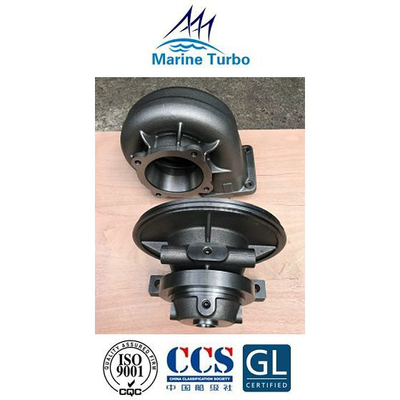

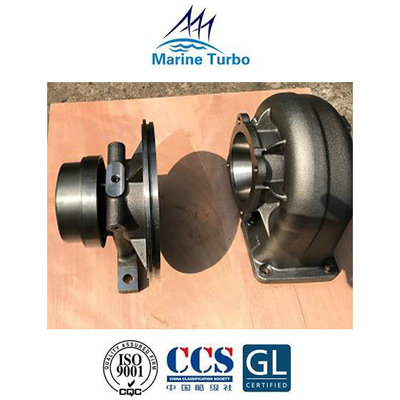

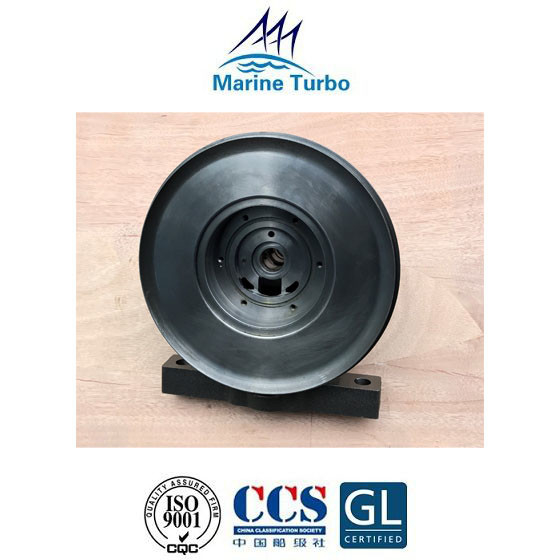

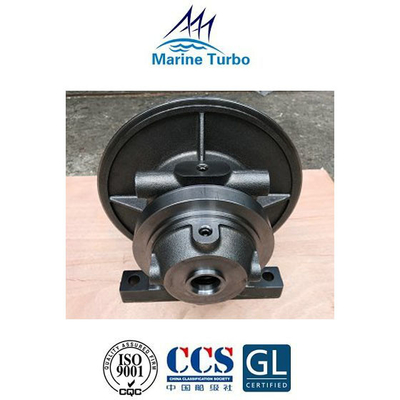

T-RH133 Turbocharger Casing-bearing casing/bearing housing/bearing pedestal belongs to T- IHI / T- RH series exhaust gas turbocharger. T- IHI / T- RH series exhaust gas turbocharger consists of mixed flow turbine and radial flow compressor.
A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking.
The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6.
Excellent thermal resistance, air and oil sealing performance and stable bearing system ensure the T-IHI / T-RH Series marine turbochargers' reliability and long service lifetime.
T-RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.
| Model | Overall Dimension(mm) | Weight | ||||
| A | B | C | D | E | Kg | |
| T- RH133 | 765 | 405 | 284 | 323 | 393 | 54 |
| T- RH143 | 908 | 456 | 316 | 361 | 458 | 146 |
| T- RH163 | 981 | 537 | 362 | 426 | 533 | 159 |
| T- RH183 | 1188 | 655 | 443 | 518 | 656 | 289 |
