Turbo Silencer For T- ABB Turbocharger Spare Parts Maintenance Replacement

Large Image : Turbo Silencer For T- ABB Turbocharger Spare Parts Maintenance Replacement

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TPS52

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T- TPS52 Silencer	Turbine Type:	Single Stage Mixed-flow Turbine
Quality:	High Performance, Top And High Level, Guaranteed	Certification:	ISO9001, CCS, Or GL
Warranty:	12 Months	Application:	Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery
High Light:	marine turbocharger silencer , turbocharger spare parts

T- TPS52 Turbo Silencer For T- ABB Turbocharger Spare Parts Maintenance Replacement

T- ABB / T- TPS series exhaust gas turbocharger features:

T- TPS52 turob silencer (also called filter silencer, whispering silencer and air outlet silencer) belongs to one part of T- ABB / T- TPS series exhaust gas turbocharger with the features as below:

It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
cooled & uncooled bearing casing design.
The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- TPS series turbocharger dimension and weight only for reference:

Model	Overall Dimensions (mm)								Weight(Kg)
Model	A	B	C	D	E	F	G	H	Weight(Kg)
T- TPS48	185	185	111	105	164	195	154	135	115
T- TPS52	220	215	132	129	187	224	186	161	166
T- TPS57	270	260	160	158	232	268	225	195	266
T- TPS61	322	306	193	188	275	320	270	234	458

Turbo Silencer For T- ABB Turbocharger Spare Parts Maintenance Replacement

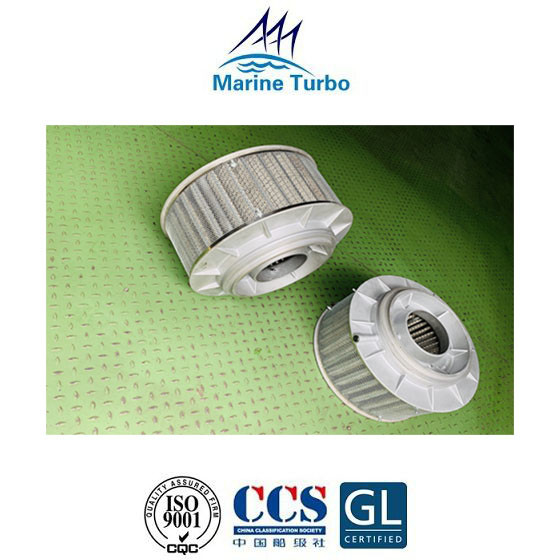

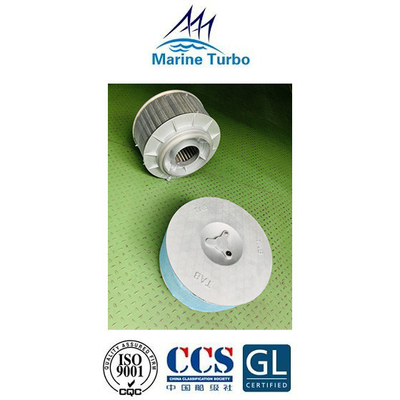

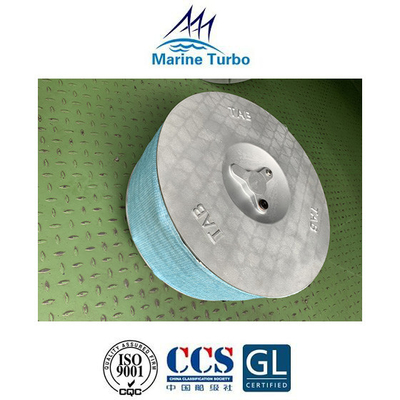

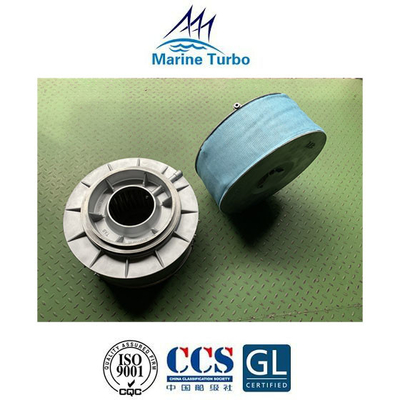

T- TPS52 turob silencer (filter silencer, whispering silencer or air outlet silencer) picture:

Turbo Silencer For T- ABB Turbocharger Spare Parts Maintenance Replacement

T- TPS52 turob silencer (filter silencer, whispering silencer or air outlet silencer) function:

As all knew, turbochargers have been extensively used in diesel engines to improve their performance. However, due to their operation at high speeds, turbochargers are susceptible to noise generation such as whine (narrow band) and whoosh (broadband). While unbalanced blades contribute to the former, the latter is due to turbulence. Such noise can be radiated from the structure, especially from the duct segment between the compressor and intercooler. The characteristics of turbocharger noise have been addressed that the compressor outlet was a major contributor to the overall intake system noise and experimentally demonstrated the effectiveness of a thicker wall and a resonator to reduce turbocharger noise that is a silencer could reduce both whine and broadband noise. (Reference from article "Design of a Multi-Chamber Silencer for Turbocharger Noise" by I. J. Lee, A. Selamet and H. Kim)
