T- TPS61 Marine Turbo Parts Speed Sensor Main Engine Turbocharger Replacement

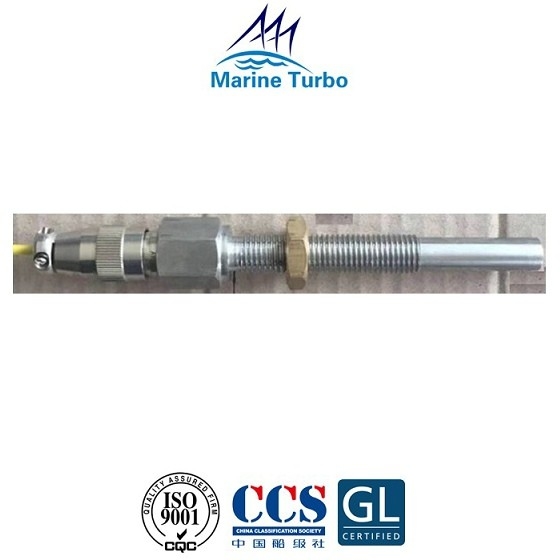

Large Image : T- TPS61 Marine Turbo Parts Speed Sensor Main Engine Turbocharger Replacement

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TPS61

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T- TPS61 Speed Sensor	Part No.:	P/N86500
Product Name:	Turbocharger Speed Sensor, Speed Measurement	Size:	Standard Size, Or As Customer's Request
Type:	Exhaust Gas Turbocharger Parts	Fuel:	Diesel
Turbine Type:	Single Stage Mixed-flow Turbine
High Light:	turbocharger spare parts , marine turbo kits

T- TPS61 Marine Turbo Parts Speed Sensor Main Engine Turbocharger Replacement

T- ABB / T- TPS series marine turbocharger description:

T- TPS61 Speed Sensor is belonging to one part of T- ABB / T- TPS series marine turbocharger, which is a mixed-flow turbocharger and consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and external lube oil system. Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine. T- ABB / T- TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to T- TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.

T- ABB / T- TPS series marine turbocharger features:

It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
cooled & uncooled bearing casing design.
The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- ABB / T- TPS series marine turbocharger dimension and weight only for reference:

Model	Overall Dimensions (mm)								Weight(Kg)
Model	A	B	C	D	E	F	G	H	Weight(Kg)
T- TPS48	185	185	111	105	164	195	154	135	115
T- TPS52	220	215	132	129	187	224	186	161	166
T- TPS57	270	260	160	158	232	268	225	195	266
T- TPS61	322	306	193	188	275	320	270	234	458
