T- TPS52 Turbocharger Compressor Wheel P/N25000 High Level Quality

T- TPS52 Turbocharger Compressor Wheel P/N25000 High Level Quality

T- ABB / T- TPS series marine turbocharger description:

T- TPS52 Turbo Compressor Wheel (also called compressor impeller) is belonging to T- ABB / T- TPS series marine turbocharger, which is a mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and external lube oil system. Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine. T- ABB / T- TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to T- TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.

T- ABB / T- TPS series marine turbocharger dimension and weight only for reference:

Introduction of turbo compressor wheel (compressor impeller):

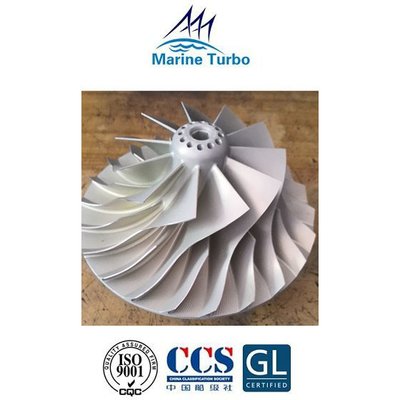

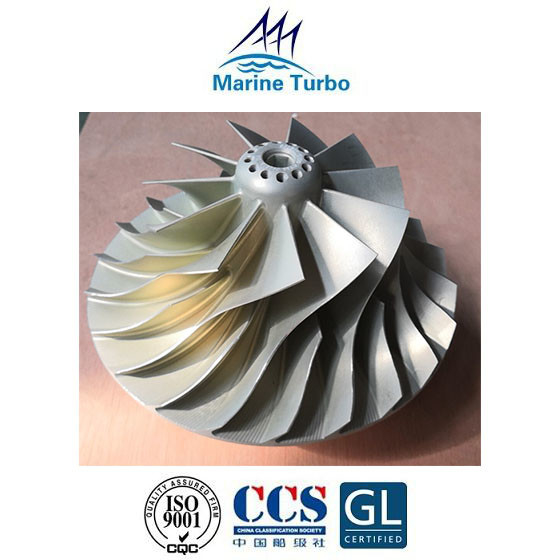

T- TPS52 Turbo Compressor Wheel (compressor impeller) is of aluminium alloy or the more expensive titanium. Manufactured from a single casting it is located on the rotor shaft by splines. Aluminium impellers have a limited life, due to creep, which is dictated by the final air temperature. Often the temperature of air leaving the impeller can be as high as 200°C.
