| Model: | T- TCR12 | Type: | Exhaust Gas Turbocharger |
|---|---|---|---|
| Fuel: | Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Engines | Engine Power Range: | 350 KW - 7MW |
| Turbine Type: | Radial Flow | Two Stroke: | T- TCR18, T- TCR20, T- TCR22 |
| Four Stroke: | T- TCR10, T- TCR12, T- TCR14, T- TCR16 | Certification: | ISO9001, CCS, Or GL |
| Application: | Marine Propulsion, Excavators, Locomotives, Power Generation, Off-road Vehicles, Machanical Drive, Mining, Marine Gensets | ||
| High Light: | turbine housing,turbocharger casing |
||

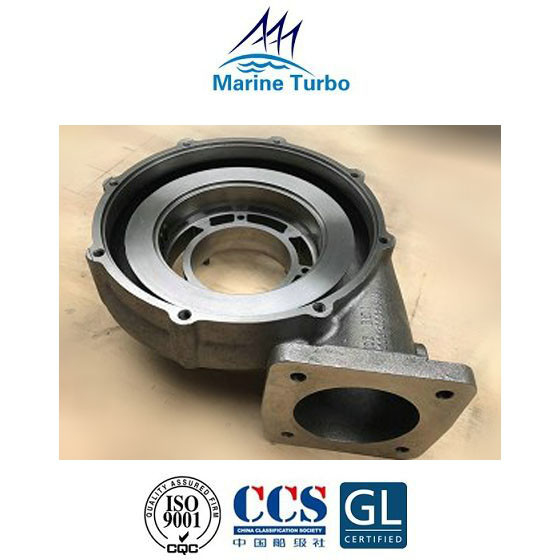

T- TCR12 Turbocharger compressor housing ( also called compressor casing or compressor cover) is belonging to T- MAN / T- TCR series exhaust gas turbochargers, which were created to address the very special challenges faced by Heavy Fuel Oil, Marine Diesel Oil, biofuel and gas engines. Products are available for the entire engine power range, from 350 kW to 7MW per turbocharger. Increase of the compressor pressure Simple installation to the engine.
| T- MAN | T- TCR Series | L (mm) | H (mm) | W (mm) | Weight (kg) |
| T- TCR10 | 860 | 410 | 327 | 48 | |
| T- TCR12 | 889 | 496 | 401 | 78 | |
| T- TCR14 | 950 | 623 | 534 | 108 | |
| T- TCR16 | 1,091 | 658 | 590 | 175 | |
| T- TCR18 | 1,311 | 870 | 730 | 306 | |
| T- TCR20 | 1,662 | 970 | 852 | 504 | |
| T- TCR22 | 1,990 | 1,320 | 1,068 | 1,044 |
T- TCR12 turbocharger comperssor housing function:

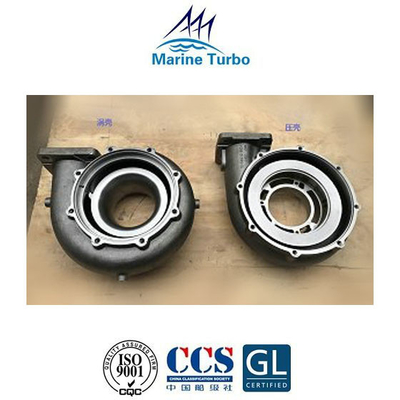

The turbocharger includes turbine part, bearing part and compressor part, so the turbine housing, bearing casing and compressor housings cover and protect all the important parts safely in the turbocharger to ensure a premium performance of the engine. The turbine casing, bearing casing and compressor housing are made by cast iron. Some casings are water cooled which complicates the casting.
