T- MAN / T- TCA series marine turbocharger features:

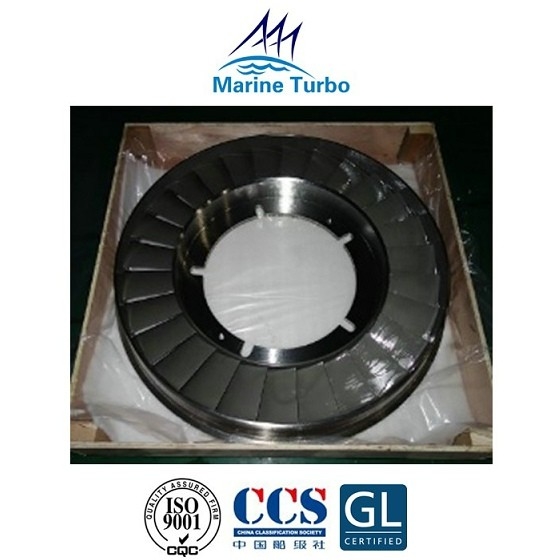

T- TCA88 turbocharger nozzle ring (also called guide vane) belongs to one part of T- MAN / T- TCA series marine turbocharger with the features as below:

• T- MAN / T- TCA series exhaust gas turbocharger is a axial-flow turbocharger with wide application range of two-stroke and four-stroke engines.
• For engine power output range from 2000 to 30000 kW per turbocharger;
• Axial flow turbine inboard high performance plain bearing design;
• Whispering silencer with air filter;
• Low-noise, Easy maintenance compressor wheel due to it special fastening method;
• Uncooled bearing casing;
• Easy access to thrust bearing;
• High efficient diffuser;
• Long-life and adjustable nozzle ring;
• High efficiency of turbine blades is designed to be possible to omit the otherwise usual damping wire in the blade ring both for 2-stroke and 4-stroke engines;
• Suitable for heavy fuel, diesel oil, biofuel and gas operation;
•
•
• T- TCA series Marine turbocharger dimension and weight only for reference:

*Casing feet, high
**Casing feet, low
***Axial gas admission casing D=360mm
****Axial gas admission casing D=300mm or dual-channel
*****Height H without gravitation tank
*^With silencer and for four-stroke engines only for reference

T- TCA88 turbocharger nozzle ring (turbo guide vane) functions:

• The turbocharger nozzle ring is in the where the energy in the exhaust gas is converted into kinetic energy, so the nozzle ring need to bear the extremely high temperature and high pressure.
• The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy which will withstand the high temperatures and be resistant to corrosion.
• Furthermore, due to its function is to convert the exhaust gas into kinetic energy, the precision processing of the nozzle ring is highly demanded.
