Marine Turbocharger Replacement Parts

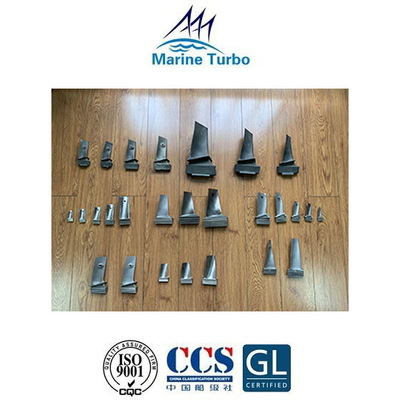

Large Image : Marine Turbocharger Replacement Parts

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T-TPL

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T-ABB / T-TPL	Product Name:	Turbocharger Bladed Shaft, Marine Turbo Bladed Shaft
Size:	Standard Size, Or As Customer's Request	Type1:	Exhaust Gas Turbocharger
Type 2:	Diesel Engine Turbocharger And Gas Engine Turbocharger	Type 3:	T-ABB Marine Turbocharger
Fuel:	Diesel, Fuel, Heavy Fuel Oil	Engine Type:	Diesel Engine And Fuel Engine
Turbine Type:	Axial Turbine	Compressor Type:	Radial Compressor
Pressure Ratio:	4.2-5.0	Power Range:	2,500-12,500kW For T-TPL-A; 3,000-28,000kW For TPL-B
T-TPL-A:	Four-stroke	T-TPL-B:	Two-stroke
Noise:	Low Noise Emission	Quality:	High Efficiency, Easy To Service, Guaranteed
Certification:	ISO9001, CCS, Or GL	Warranty:	12 Months
Application:	Marine Engine, Oil And Gas Offshore, Power Generation	Package:	Wood Case, Carton Box Or According To Require
High Light:	turbo replacement parts , marine turbocharger kits

T-ABB/T-TPL-A series turbocharger design features:

T-TPL SERIES Turbine Blade type turbocharger belongs to T-TPL-A series. The T-TPL-A series turbocharger is for large medium-speed diesel and gas engines,
with a power output range from2,500kW to 12,500kW.

Turbine: The T-TPL-A turbocharger is axial turbine for high efficiencies and high volume flow rates.
Compressor: The T-TPL-A comressors ensure the high volume flow rates which allow optimized matching to different engine applications. Its single-piece, splitter-bladed aluminum alloy wheels with backswept blades ensure high efficiencies and wide compressor maps. its pressure ratio is from 4.2 up to 5.0 based on different design.
Bearing: The T-TPL-A bearing assembly lubricated directly by the engine lube oil system, plain bearings can run up to 36,000 hours before being overhauled.
Casing: The T-TPL-A casings is optimized for 4-stroke engines application, include integrated waste gate flanges, temperature and pressure measurement connections. All-round insulation minimizes the turbocharger noise level and casing surface temperature.
It's widely used on diesel marine engine as well as gas engines.

T-TPL-A Series includes:

T-ABB	T-TPL-A Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight (kg)*
	T-TPL65	870	889	1545	600	360	362	458	1230
	T-TPL69	1025	1043	1852	708	424	427	540	1780
	T-TPL73	1192	1217	2154	822	494	497	627	3070
	T-TPL77	1416	1446	2539	978	586	589	746	4840

Note: *includes filter silencer.

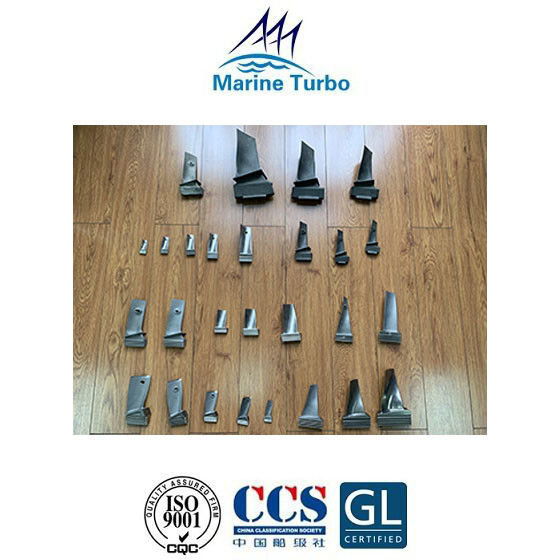

Marine Turbocharger Replacement Parts

T-TPL65 bladed shaft is non-assembly type of shaft:

Marine Turbocharger Replacement Parts

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.

Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.

When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.

Brief profile for Marine Turbo Company:

Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for T-MAN, T-ABB, T-KBB, T-MET, T-IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or overhaul needs for various brands with a quick response and a reasonable price.

Marine Turbo supply marine turbocharger replacement parts:

With over 20 years of manufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....

According to customers’ requirements, Marine Turbo can offer the marine turbocharger replacement parts suitable for the following Brands and models:

T-ABB	T-VTR“0”“1”“4”, P/D/E
	T-TPS44D/E/F	T-TPS48D/E/F	T-TPS52D/E/F	T-TPS57D/E/F	T-TPS61D/E/F
	T-TPL65	T-TPL69	T-TPL73	T-TPL77	T-TPL80	T-TPL85
	T-RR151	T-RR181
	T-A145-M	T-A170
T-MAN	T-NR12/S	T-NR15/R	T-NR17/S	T-NR20	T-NR20/R	T-NR20/S
	T-NR24/R	T-NR24/S	T-NR26/R	T-NR29/S	T-NR34/S
	T-NA34T/34S	TNA40T/40S	T-NA48T/48S	T-NA57T/57T9	T-NA70T/70T9
	T-TCR12	T-TCR16	T-TCR18	T-TCR20	T-TCR22
	T-TCA44	T-TCA55	T-TCA66	T-TCA77	T-TCA88
T-MET	T-MET18SRC	T-MET26SR	T-MET30SR
	T-MET33SB/SBII/SC/SD	T-MET35/35S/35SA/350	T-MET42SB/SBII/SC/SD/SE	T-MET45/45S/450	T-MET53SB/SBII/SC/SD/SE
	T-MET66SB/SC/SD	56S-B	560	60MA	66SB/SC/SD/SE/SEII
	T-MET53SE
	T-MET83SE	T-MET83SEII
T-KBB	T-HPR3000	T-HPR4000	T-HPR5000	T-HPR6000
	ST5 SERIES
	T-HRBR3-2	T-HRBR4-3
T-IHI	T-RH133	T-RH143	T-RH163	T-RH183	T-RH203
	T-AT14
	T-RU110	T-RU120

Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.

Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.

Applications of marine turbocharger replacement parts:

Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
