Product Details:
Payment & Shipping Terms:
|
| Model: | T- NR12/S | Product Name: | Turbocharger Diffuser, Marine Turbocharger Diffuser, Marine Turbo Diffuser, |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Type1: | Exhaust Gas Turbocharger |
| Type 2: | Diesel Engine Turbocharger | Type 3: | T-MAN T-NR Turbocharger |
| Fuel: | Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Operation | Engine Type: | Diesel, Biofuel And Gas Engines |
| Engine Power Range: | 450 KW - 5400kW | Turbine Type: | Radial Flow |
| Pressure Ration: | Max. 4.5 | Permiss. Temp.: | Max. 650°C |
| Quality: | High Performance, Top And High Level, Guaranteed | Certification: | ISO9001, CCS, Or GL |
| Warranty: | 12 Months | Application: | Marine Engine, Power Engine And Industrial Engine |
| Package: | Wood Case, Carton Box Or According To Require | ||
| High Light: | marine turbocharger kits,turbo spare parts |
||

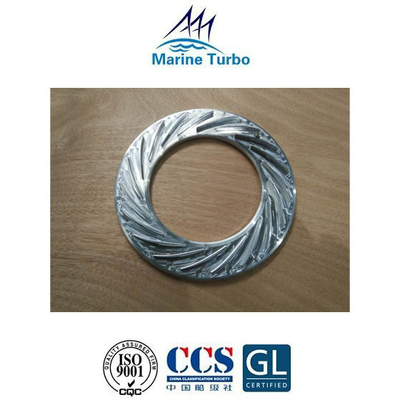

T- NR12/S turbocharger diffuser is one part for T- MAN / T- NR series turbochargers, which were designed comparatively simply with a cast radial turbine.
The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm).
T- NR series turbocharger is widely used in ship building, locomotive, land power station and petroleum drilling industries, extensively applicable to in-land and coastal transportation and fishing due to its high efficiency, small size, light weight, favorable maintainability and serviceability, adequate supply of spare parts.
| T- MAN | T- NR Series |
| T- NR12/S | |
| T- NR14/S | |
| T- NR15/R | |
| T- NR17/S | |
| T- NR20 | |
| T- NR20/R | |
| T- NR20/S | |
| T- NR24/R | |
| T- NR24/S | |
| T- NR26/R | |
| T- NR29/S | |
| T- NR34/R | |
| T- NR34/S |
| Type | L(mm) | W(mm) | H(mm) | Weight (kg) |
| T- NR12/S | 858 | 402 | 432 | 155 |
| T- NR15/R | 715-724 | 500-520 | 525-672 | 200 |
| T- NR20/R | 900-960 | 662-692 | 700-730 | 400 |
| T- NR20/S | 1,165 | 715 | 678 | 350 |
| T- NR24/S | 1470 | 748 | 838 | 505 |
