Large Ship Engine T- Mitusbishi Turbocharger / Exhaust Gas Turbocharger

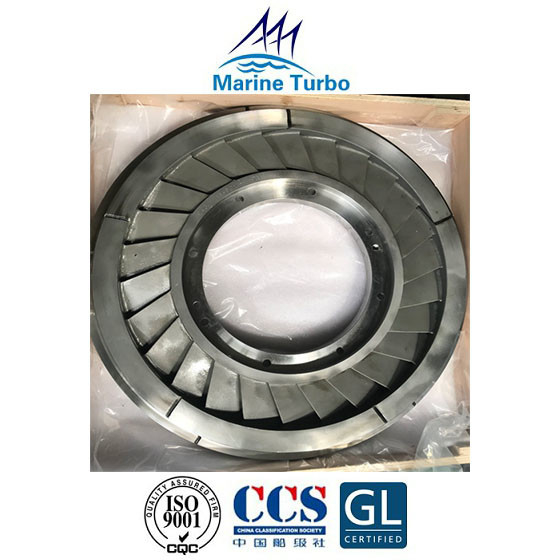

Large Image : Large Ship Engine T- Mitusbishi Turbocharger / Exhaust Gas Turbocharger

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- MET45

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-2 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 pcs / month

Contact Now

Detailed Product Description

Model:	T- MET45 Nozzle Ring	Product Name:	Turbocharger Nozzle Ring, Marine Turbo Guide Vane
Type1:	Exhaust Gas Turbocharger	Quality:	High Performance, High Turbocharging Efficiency, Guaranteed
Certification:	ISO9001, CCS, Or GL	Application:	Large Ships And Stationary Diesel Engines
High Light:	nozzle ring used in turbocharger , turbine diffuser

Large Ship Engine T- Mitusbishi Turbocharger / Exhaust Gas Turbocharger

T- Mitsubishi / T- MET-original series exhaust gas turbocharger features:

T- MET45 turbocharger nozzle ring (also called turbo guide vane) belongs to one part of T- Mitsubishi / T- MET-original series exhaust gas turbocharger, which is widely used in marine and stationary engines. The T- MET-original series turbocharger is axial type of turbine with relatively high pressure turbocharging suitable for the large engine.Since the 1965 until now, T- MET Series exhaust gas turbochargers has developed many series to meet the market demands, it includes the Axial type and Radial type of turbochargers

T- MET	Axial Type			Radial Type
	Original and ..0 Series	T-S, -SA Series	T-SB,SBII Series	T-SR, SRII Series
	T-SC,SD Series	T-SE Series	T-SEII Series	T-SRC Series
	T-MA Series	T-MB Series	T-MBII Series	T-ER Series

The bearing is designed on the inner side of the impeller and turbine blade;
The Rotor is supported by a pedestal with less thermal deformation;
Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;

T- MET turbocharger series include:

T-MET	Original and ..0 Series	T-S, -SA Series	T-SB,SBII Series	T-SC Series	T-SD Series	T-SE Series	T-SEII Series
	T-MET35	T-MET35S/SA	T-MET33SB/SBII	T-MET33SC	T-MET33SD	T-MET33SE	T-MET33SEII
	T-MET350	T-MET45S/SA	T-MET42SB/SBII	T-MET42SC	T-MET42SD	T-MET42SE	T-MET42SEII
	T-MET45	T-MET56S/SA	T-MET53SB	T-MET53SC	T-MET53SD	T-MET53SE	T-MET53SEII
	T-MET450		T-MET66SB	T-MET66SC	T-MET66SD	T-MET66SE	T-MET66SEII
	T-MET56			T-MET83SC		T-MET71SE	T-MET71SEII
	T-MET560					T-MET83SE	T-MET83SEII
						T-MET90SE

	T-MA Series	T-MB Series	T-MBII Series	T-SR Series	T-SRII Series	T-SRC Series	T-ER Series
	T-MET33MA	T-MET33MB	T-MET33MBII	T-MET22SR	T-MET22SRII	T-MET18SRC	T-MET13ER
	T-MET42MA	T-MET37MB	T-MET37MBII	T-MET26SR	T-MET26SRII	T-MET22SRC	T-MET16ER
	T-MET53MA	T-MET42MB	T-MET42MBII	T-MET30SR	T-MET30SRII	T-MET26SRC	T-MET20ER
	T-MET60MA	T-MET48MB	T-MET48MBII			T-MET30SRC	T-MET24ER
	T-MET66MA	T-MET53MB	T-MET53MBII			T-MET37SRC	T-MET28ER
	T-MET71MA	T-MET60MB	T-MET60MBII				T-MET34ER
	T-MET83MA	T-MET66MB	T-MET66MBII
	T-MET90MA	T-MET71MB	T-MET71MBII
		T-MET83MB	T-MET83MBII
		T-MET90MB	T-MET90MBII

The function of T- MET45 turbocharger nozzle ring / turbo guide vane:

This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.
The turbocharger nozzle ring is in the where the energy in the exhaust gas is converted into kinetic energy, so the nozzle ring need to bear the extremely high temperature and high pressure.
The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy which will withstand the high temperatures and be resistant to corrosion.
Furthermore, due to its function is to convert the exhaust gas into kinetic energy, the precision processing of the nozzle ring is highly demanded.

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
