CCS Turbo Replacement Parts T- TPL65 Series Large Medium Speed

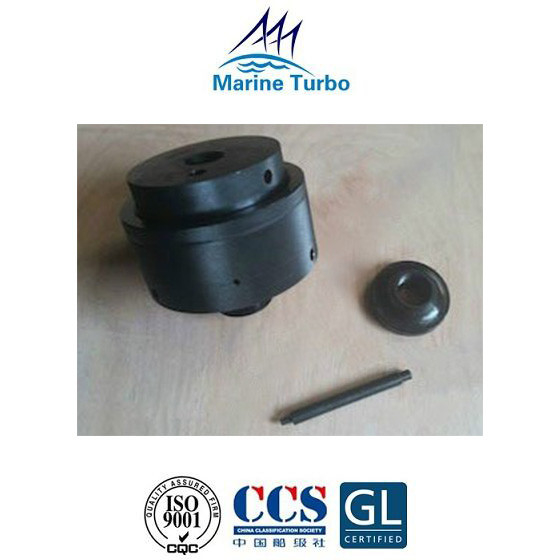

Large Image : CCS Turbo Replacement Parts T- TPL65 Series Large Medium Speed

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TPL65

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Model:	T- TPL Series Turbocharger Tools	Product Name:	Turbocharger Bladed Shaft, Marine Turbo Bladed Shaft
Type:	Exhaust Gas Turbocharger	T-TPL-B:	Two-stroke
Noise:	Low Noise Emission	Quality:	High Efficiency, Easy To Service, Guaranteed
High Light:	marine turbocharger kits , turbo replacement parts

CCS Turbo Replacement Parts T- TPL65 Series Large Medium Speed

T- ABB / T- TPL-A series turbocharger design features:

T- TPL65 turbocharger tools belongs to service for T- ABB / T- TPL-A series turbocharger. The T- TPL-A series turbocharger is for large medium-speed diesel and gas engines with a power output range from2,500kW to 12,500kW.

Turbine: The T- TPL-A turbocharger is axial turbine for high efficiencies and high volume flow rates.
Compressor: The T- TPL-A comressors ensure the high volume flow rates which allow optimized matching to different engine applications. Its single-piece, splitter-bladed aluminum alloy wheels with backswept blades ensure high efficiencies and wide compressor maps. its pressure ratio is from 4.2 up to 5.0 based on different design.
Bearing: The T- TPL-A bearing assembly lubricated directly by the engine lube oil system, plain bearings can run up to 36,000 hours before being overhauled.
Casing: The T- TPL-A casings is optimized for 4-stroke engines application, include integrated waste gate flanges, temperature and pressure measurement connections. All-round insulation minimizes the turbocharger noise level and casing surface temperature.
It's widely used on diesel marine engine as well as gas engines.

T- ABB / T- TPL-A series turbocharger types, dimension and weight:

T- ABB	T- TPL-A Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight (kg)*
	T- TPL65	870	889	1545	600	360	362	458	1230
	T- TPL69	1025	1043	1852	708	424	427	540	1780
	T- TPL73	1192	1217	2154	822	494	497	627	3070
	T- TPL77	1416	1446	2539	978	586	589	746	4840

Note: *includes filter silencer.

CCS Turbo Replacement Parts T- TPL65 Series Large Medium Speed

Brief introduction of marine turbocharger:

Marine turbocharger /Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
