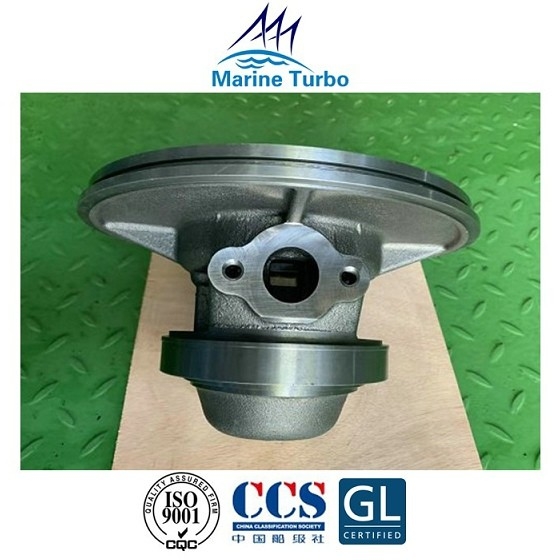

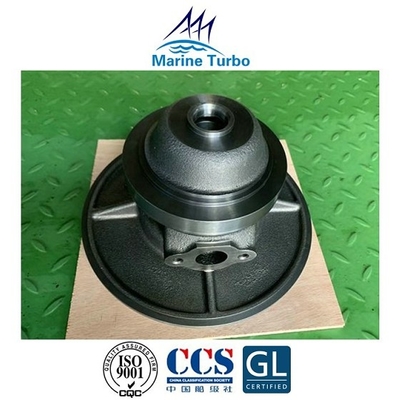

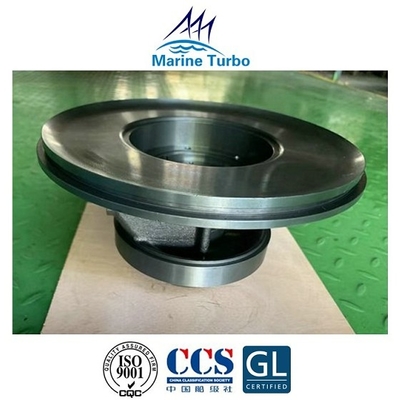

CCS Turbo Bearing Housing , Engine Turbocharger Spares T- RH133

CCS Turbo Bearing Housing , Engine Turbocharger Spares T- RH133

T- IHI / T- RH series exhaust gas turbocharger design features:

T- RH133 Superior performance: the special design for its compressor wheels and turbine wheels make the high flow rate, wide operationg ranges and super response possible.

• Two types of journal bearing: semi-floating type and full-floating type, in order to prevent the shaft to move.
• Compact design: T- RH series is developed to reduce in size and weight, but maintain the necessary strength.
• Wide application: T- RH series turbochargers provide customers with the widest range of applications, such as automotive, heavy truck, construction, marine and industrial engine.

T- IHI turbocharger types include:

The inclusion of turbocharger casing:

The turbocharger casing includes turbine part, bearing part and compressor part, so the turbine housing, bearing casing and compressor housings cover and protect all the important parts safely in the turbocharger to ensure a premium performance of the engine.

The turbine casing, bearing casing and compressor housing are made by cast iron. Some casings are water cooled which complicates the casting. Water cooled casings are necessary for turbochargers with ball and roller bearings with their own integral LO supply (to keep the LO cool). Modern turbochargers with externally lubricated journal bearings have uncooled casings. This leads to greater overall efficiency as less heat energy is rejected to cooling water and is available for the exhaust gas boiler.
