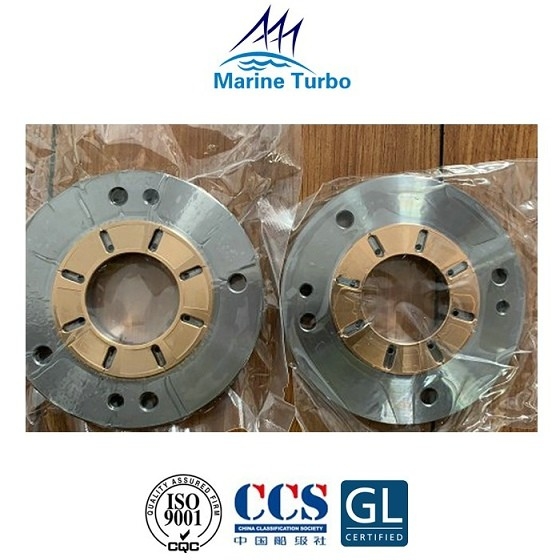

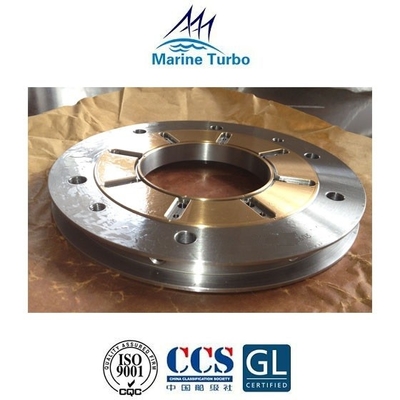

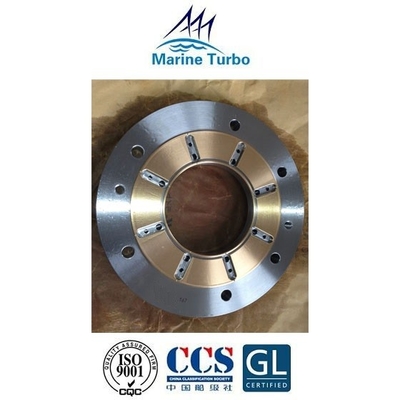

400kW Power Turbo Bearings For Marine And Stationary Engines

Large Image : 400kW Power Turbo Bearings For Marine And Stationary Engines

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- MET Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-2 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 pcs / month

Contact Now

Detailed Product Description

Model:	T- MET Series Turbo Bearing	Size:	Standard Size, Or As Customer's Request
Type:	Exhaust Gas Turbocharger	Engine Type:	Diesel Engine
Turbine Type:	Axial And Radial Type	Power Output:	400kW To 45,200kW
Warranty:	12 Months	Application:	Marine And Stationary Engines
High Light:	turbocharger bearing , marine turbo kits

400kW Power Turbo Bearings For Marine And Stationary Engines

features:

T- MET series turbo bearings belong to the part of T- Mitsubishi turbocharger and which has the features as below:

Since the 1965 until now, T-MET Series exhaust gas turbochargers has developed many series to meet the market demands, it includes the Axial type and Radial type of turbochargers:

T-MET	Axial Type			Radial Type
	Original and ..0 Series	T-S, -SA Series	T-SB,SBII Series	T-SR, SRII Series
	T-SC,SD Series	T-SE Series	T-SEII Series	T-SRC Series
	T-MA Series	T-MB Series	T-MBII Series	T-ER Series

The bearing is designed on the inner side of the impeller and turbine blade;
The Rotor is supported by a pedestal with less thermal deformation;
Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;
The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle when doing the maintenance;
An advanced aerodynamic design for compressor and turbine is adopted in T-MET Series turbochargers;
Simple and compact design of T-MET Series turbocharger make it long service lifetime and high reliability;
T-MET Series turbochargers is mounted low noise silencer to reduce the noise and make it environmentally friendly when the engine is running;
T-MET series turbochargers are widly used marine and stationary engines.
T-MET series turbochargers service the engine power output range from 400kW to 45,200kW per unit.

T- MET turbocharger includes:

T- MET	Original and ..0 Series	T-S, -SA Series	T-SB,SBII Series	T-SC Series	T-SD Series	T-SE Series	T-SEII Series
	T-MET35	T-MET35S/SA	T-MET33SB/SBII	T-MET33SC	T-MET33SD	T-MET33SE	T-MET33SEII
	T-MET350	T-MET45S/SA	T-MET42SB/SBII	T-MET42SC	T-MET42SD	T-MET42SE	T-MET42SEII
	T-MET45	T-MET56S/SA	T-MET53SB	T-MET53SC	T-MET53SD	T-MET53SE	T-MET53SEII
	T-MET450		T-MET66SB	T-MET66SC	T-MET66SD	T-MET66SE	T-MET66SEII
	T-MET56			T-MET83SC		T-MET71SE	T-MET71SEII
	T-MET560					T-MET83SE	T-MET83SEII
						T-MET90SE

	T-MA Series	T-MB Series	T-MBII Series	T-SR Series	T-SRII Series	T-SRC Series	T-ER Series
	T-MET33MA	T-MET33MB	T-MET33MBII	T-MET22SR	T-MET22SRII	T-MET18SRC	T-MET13ER
	T-MET42MA	T-MET37MB	T-MET37MBII	T-MET26SR	T-MET26SRII	T-MET22SRC	T-MET16ER
	T-MET53MA	T-MET42MB	T-MET42MBII	T-MET30SR	T-MET30SRII	T-MET26SRC	T-MET20ER
	T-MET60MA	T-MET48MB	T-MET48MBII			T-MET30SRC	T-MET24ER
	T-MET66MA	T-MET53MB	T-MET53MBII			T-MET37SRC	T-MET28ER
	T-MET71MA	T-MET60MB	T-MET60MBII				T-MET34ER
	T-MET83MA	T-MET66MB	T-MET66MBII
	T-MET90MA	T-MET71MB	T-MET71MBII
		T-MET83MB	T-MET83MBII
		T-MET90MB	T-MET90MBII

T- MET Series turbochargers undergone revolusionary changes in order to improve turbocharger performance by mainly modifying the compressor wheel and turbine blade.

Improvement of T-MET Compressor Impeller:

400kW Power Turbo Bearings For Marine And Stationary Engines

Improvement of T- MET Turbine Blades:

400kW Power Turbo Bearings For Marine And Stationary Engines

The function of turbo bearing:

Turbo Bearings play an important role in turbochargers. They not only ensure safe and reliable high-speed rotation of the rotor, but also ensure that the rotor is fixed in the correct position. Therefore, the reliability of the bearing is extremely relevant to the normal operation of the supercharger and the diesel engine. Turbocharger bearings work under high temperature, high speed and light load conditions to ensure reliable operation of the bearings under working conditions. In addition to ensuring that the structural design, materials and manufacturing of the bearings to meet the requirements, good maintenance management is also critical important.
